Air Collectors (Receivers)

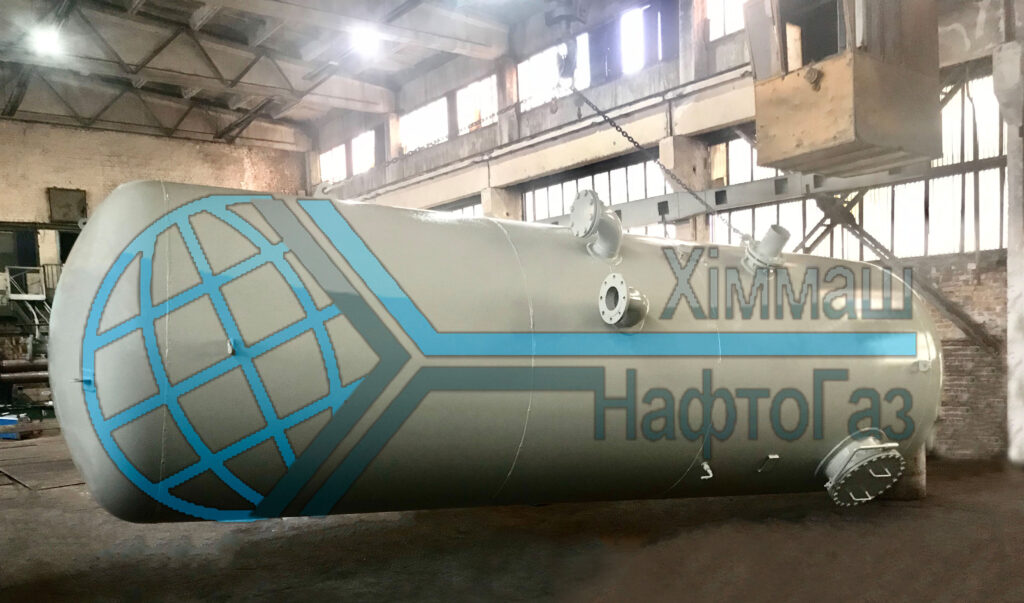

Air collectors (receivers) of own production:
The company “KHIMMASHNEFTEGAZ” manufactures air collectors (receivers), the design of which is extremely simple – it is a metal container of cylindrical shape of different volume (0,5; 1,0; 1,0; 1,6; 2,0; 3,2; 4,0; 6,3; 8,0; 10; 16; 20; 25; 32; 40; 50 m³ and working pressure: 0,8; 1,0; 1,0; 1,2; 1,6; 2,0; 2,5; 4,0; 6,3 MPa (8, 10, 12, 16, 20, 25, 40, 40, 63 kgs/cm²).
Air collectors (air receivers) can be of two types:

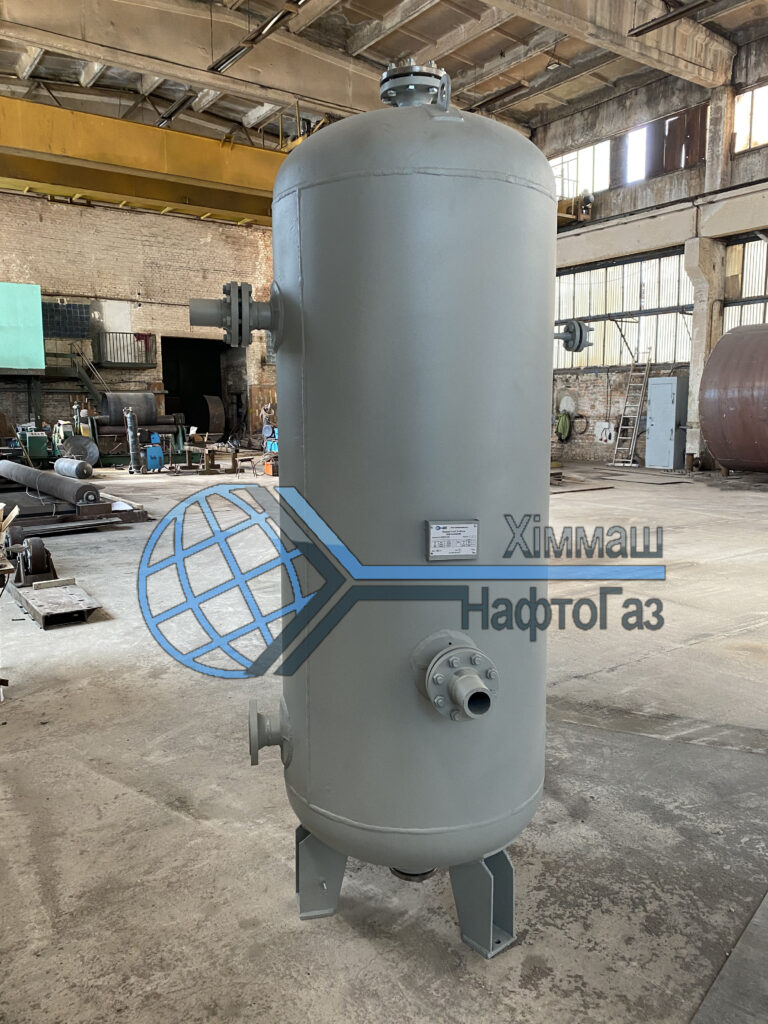

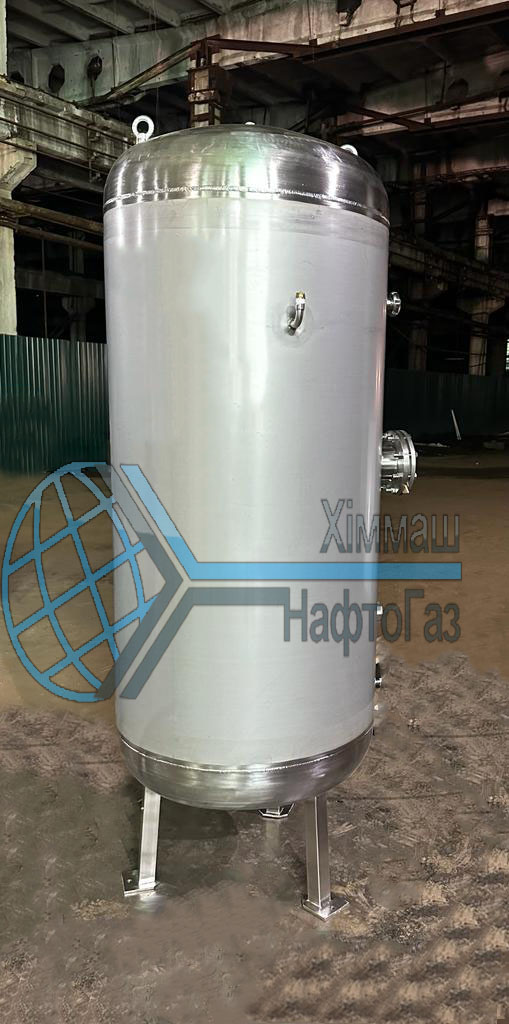

- upright;

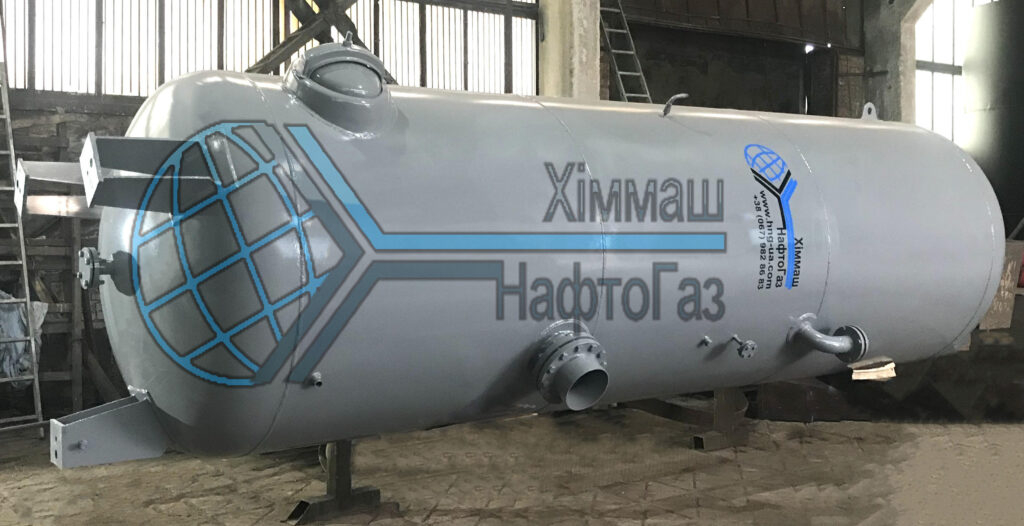

- horizontal.
The working medium is air, but it is possible to use an air collector to store nitrogen, argon and other inert gases.
These tanks are designed to smooth out pressure fluctuations in air lines or to provide an air reserve for the operation of air stationary general purpose air compressors of air or rotary compressors.
Air collectors (receivers) by agreement with the developer of technical specifications can be used as storage vessels for air, nitrogen, argon and other inert gases, and are designed for operation in areas with seismicity not more than 6 points on a twelve-point scale. If it is necessary to operate Air Collectors (Receivers) under the condition of seismicity of the area of operation more than 6 points – the calculation of seismic resistance of the vessel is made, which is attached to the passport of the pressure vessel. Climatic design of Air Collectors (Receivers):
UHL1 – when delivered to areas with temperate and cold climate.
T1 – for delivery to areas with tropical climate.
Air collectors (Receivers) with a volume of 25 m³ and above are equipped with ring supports.
“KHIMMASHNEFTEGAZ” completes these air collectors (receivers) with the following equipment:
- safety valve;
- with a manometer;
- three-way valve;
- coupling shut-off valve.
All air receivers manufactured by us are subject to thorough inspection, hydraulic testing and pneumatic leak testing.
Таблица штуцеров:
|
Designation |
Name |
Quantity |
Du, mm |
Ru, MPa |
| А | Air inlet | 1 | See Tab. | 1,6* |
| Б | Air outlet | 1 | ||
| В1-2 | Installing the safety valve | See Tab. | ||
| Г | К регулятору производительности | 1 | 15 | |
| Д | To the manometer | 1 | М20×1,5 | — |
| Е | Condensate outlet | 1 | 25 | |
| Ж | Residue output | 1 | 50 | 1,6* |
| З | Reserve | 1 | See Tab. | |
| И | Installing the pressure gauge | 1 | М20×1,5 | — |
| К | Luke | See Tab. | 420×325 | |
|
Designation |
Du, mm |
Quantity |
Dimensions , мм |
Weight, kg |
|||||||||||||||||||
| А, Б |
В1-2 | З | В | В1 | В2 | К | D | D1 | d | h1 | h2 | h3 | h4 | h5 | h6 | h7 | K1 | K2 | K3 | K4 | H | ||
| B-0,5 | 50 | — | 80 | — | — | — | — | 600 | 520 | 20 | 1410 | 540 | 1190 | 1420 | 310 | — | — | 290 | 265 | 400 | — | 2830 | 220 |
| B-1,0 | 65 | 800 | 720 | 1400 | 450 | 1100 | 1350 | 400 | 340 | 315 | 500 | 3170 | 355 | ||||||||||
| B-1,6 | 50 | 50 | 1 | 1000 | 920 | 1440 | 540 | 1190 | 1440 | 410 | 450 | 390 | 365 | 600 | 2990 | 450 | |||||||
| B-2,0 | 100 | 2040 | 750 | 2090 | 490 | 610 | 3590 | 550 | |||||||||||||||
| B-3,2 | 80 | 1200 | 1100 | 24 | 1995 | 695 | 1845 | 1995 | 500 | 410 | 440 | 415 | 720 | 3830 | 800 | ||||||||
| B-4,0 | 150 | 2745 | 795 | 2145 | 2845 | 4535 | 975 | ||||||||||||||||
| B-6,3 | 200 | 80 | 1 | 1400 | 1260 | 3070 | 945 | 2345 | 555 | 445 | 2645 | 305 | 480 | 830 | 975 | 4750 | 1500 | ||||||
| B-8,0 | 150 | 1600 | 1410 | 35 | 2975 | 950 | 2150 | 2350 | 650 | 350 | 2825 | 555 | 530 | 940 | 1080 | 4595 | 1610 | ||||||
| B-10 | 200 | 4150 | 1250 | 2850 | 5700 | 1985 | |||||||||||||||||
| B-16 | 200 | 150 | 2000 | 1810 | 3885 | 1155 | 2055 | 2255 | 745 | 355 | 3010 | 655 | 630 | 1150 | 1480 | 5710 | 3175 | ||||||
| B-20 | 250 | 1 | 42 | 4855 | 1405 | 1905 | 2105 | 895 | 365 | 2705 | 7055 | 4080 | |||||||||||
| B-25 | 300 | 1 | 2200 | 2010 | 5090 | 1690 | 1890 | 2090 | 930 | 460 | 3090 | 735 | 700 | 1250 | 1580 | 7370 | 5075 | ||||||
Note: For air collectors B-0,5…B-4 the safety valve is installed on the reserve connection 3.
*) Depending on the operating pressure.
**) Dimensions are preliminary, final dimensions are determined after the development of design documentation.
“KHIMMASHNEFTEGAZ” will be glad to see you among our customers and partners.
